29.9–50kW Three-Phase Hybrid Solar Inverter

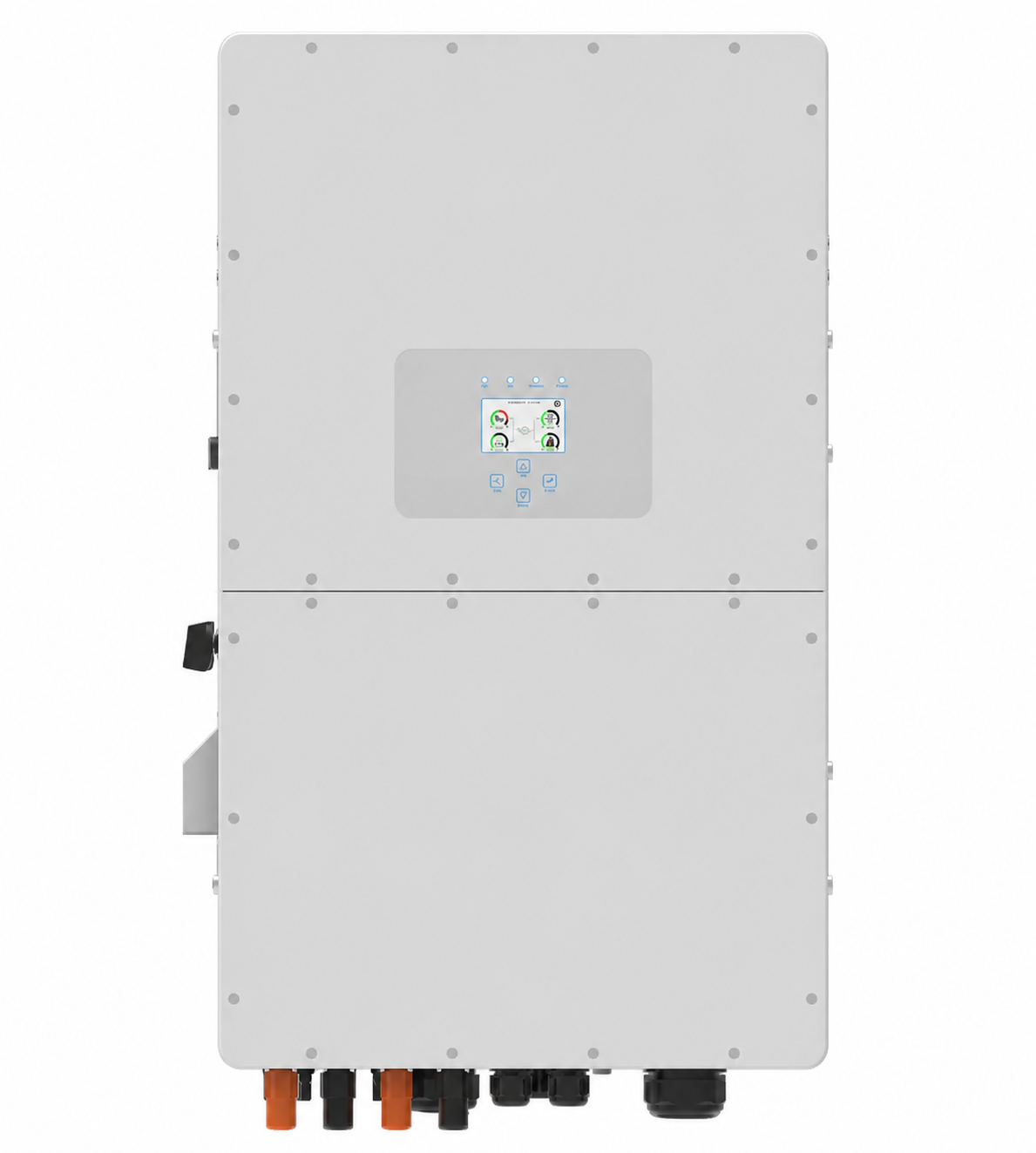

29.9–50 kW three-phase hybrid solar inverter front view
Top Brand · Off Grid & Hybrid Inverter

29.9–50kW Three-Phase Hybrid Solar Inverter

The Three Phase Hybrid Inverter series is designed for robust performance and efficient energy management in both residential and commercial settings. With a focus on high efficiency, seamless integration, and advanced protection features, these inverters offer a versatile solution for modern energy needs.

BrandTop Brand
Max. Efficiency97.6%
Power Range29.9 / 30 / 35 / 40 / 50 kW
TypeHybrid
Communication InterfaceRS485 / RS232 / CAN
Warranty5–10 years
Request a QuoteWhatsApp

Product Description

Built for higher-capacity three-phase solar and storage systems, this hybrid inverter series combines PV, battery, grid, load, and generator management in one platform. Five power options from 29.9 kW to 50 kW support commercial facilities and larger residential projects.

100% Unbalanced OutputSupports unbalanced loads on each phase for practical three-phase installations.
AC CouplingAllows energy storage to be added to an existing solar system.
Parallel OperationSupports up to 10 units in parallel for scalable on-grid and off-grid systems.
100 A Battery CurrentProvides up to 100 A charging and discharging current for supported battery systems.
High-Voltage BatteryHigh-voltage battery architecture improves overall system efficiency.
Scheduled Energy ControlSix charging and discharging periods support time-of-use operation and generator energy storage.

Application & Product Highlights

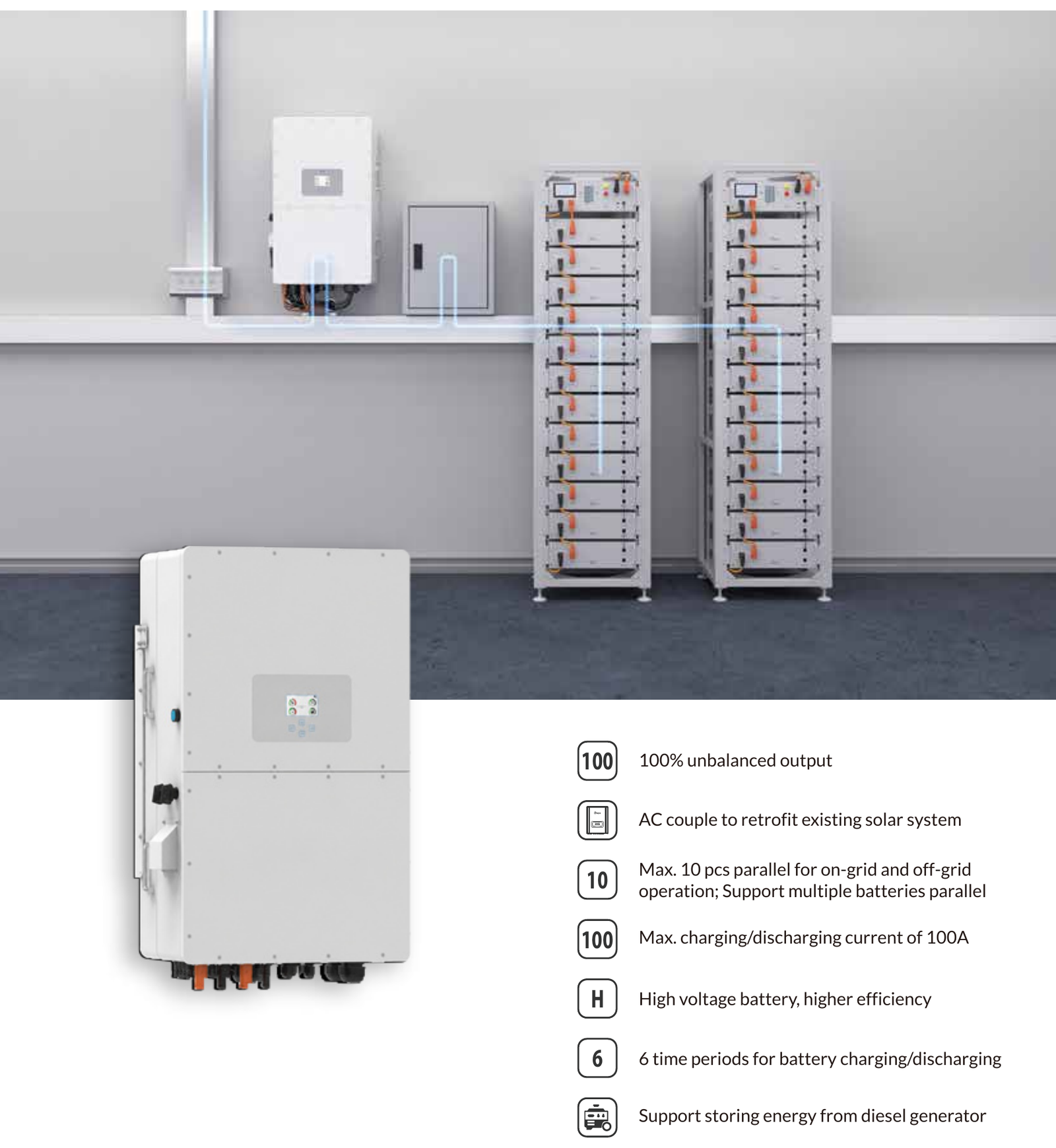

29.9–50 kW three-phase hybrid inverter application and features

Technical Specifications

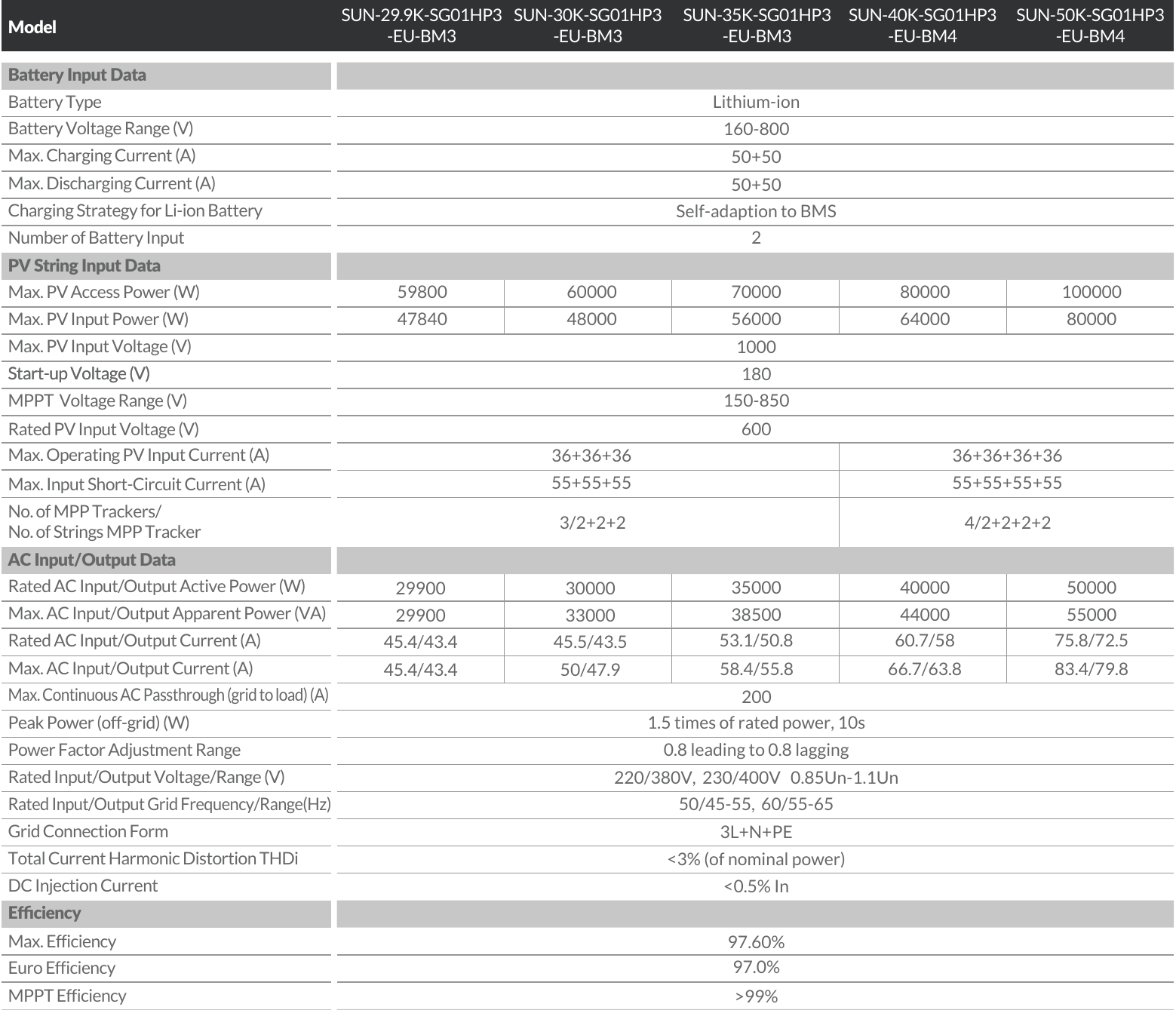

Technical specifications for 29.9–50 kW three-phase hybrid inverter models

Application Examples

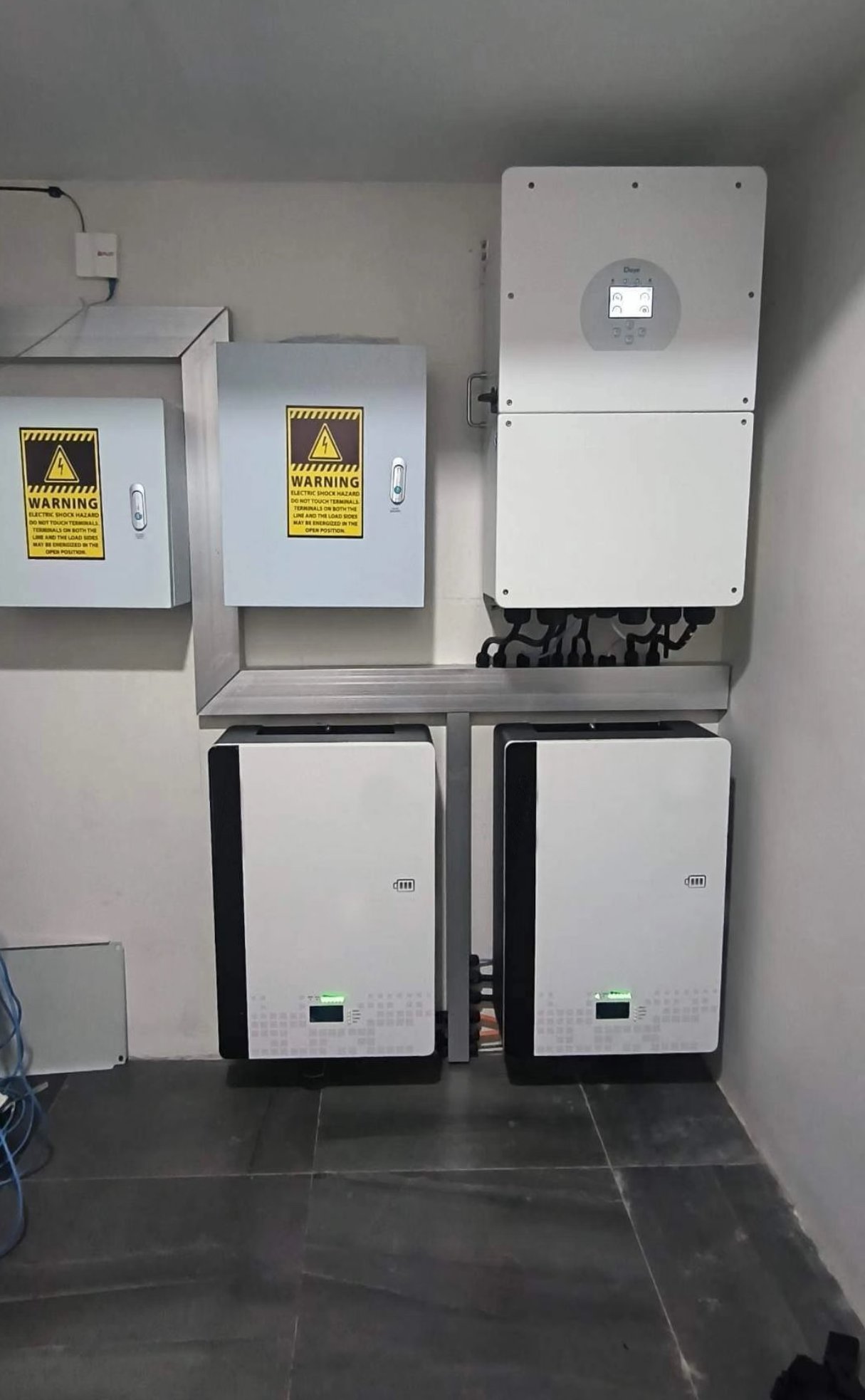

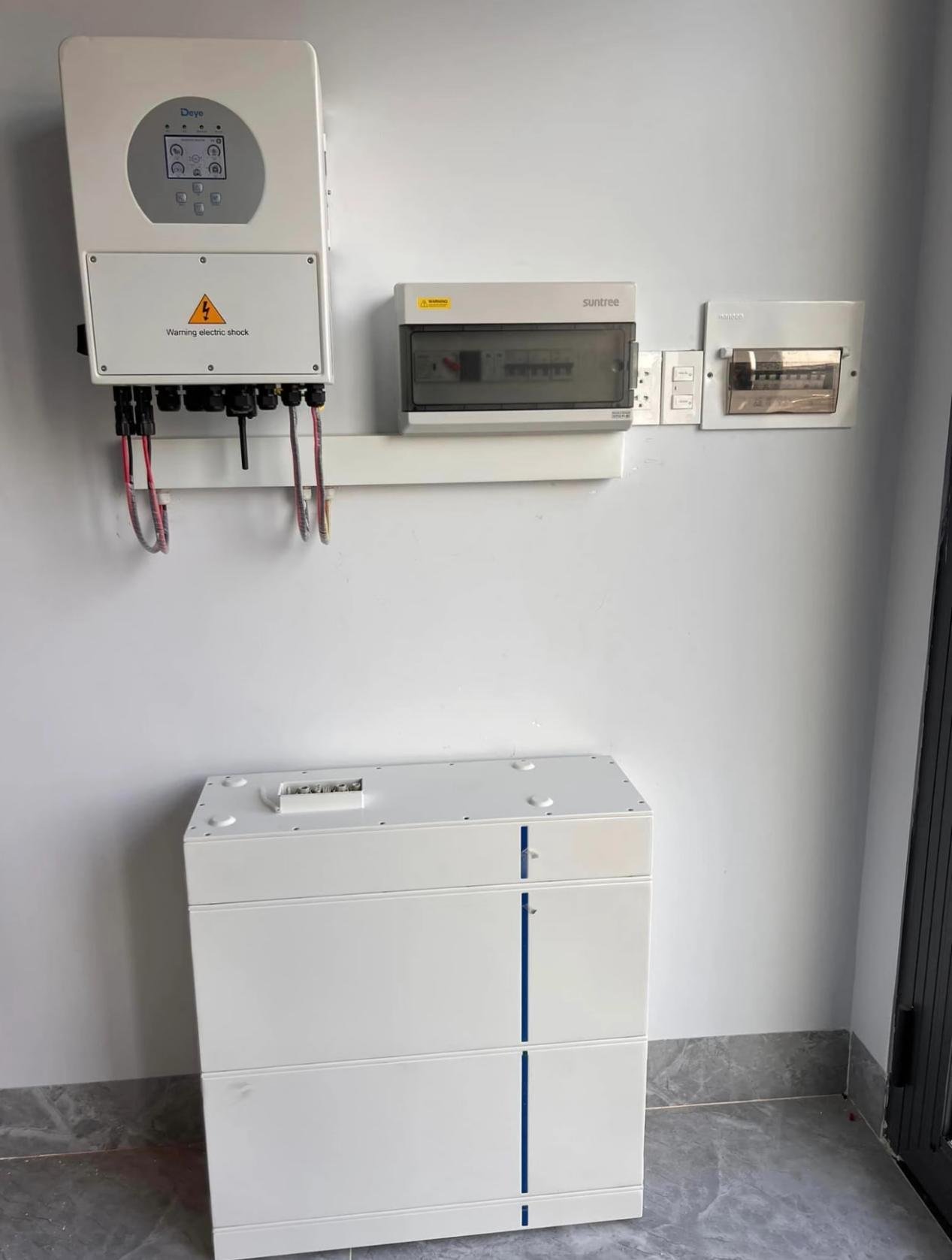

29.9–50 kW three-phase hybrid inverter installation exampleCommercial three-phase hybrid solar and battery installation example

Start an Inquiry

Tell us your three-phase load, project scale, battery plan, grid or generator requirements, and delivery market. Our team will help select the appropriate 29.9–50 kW model.
