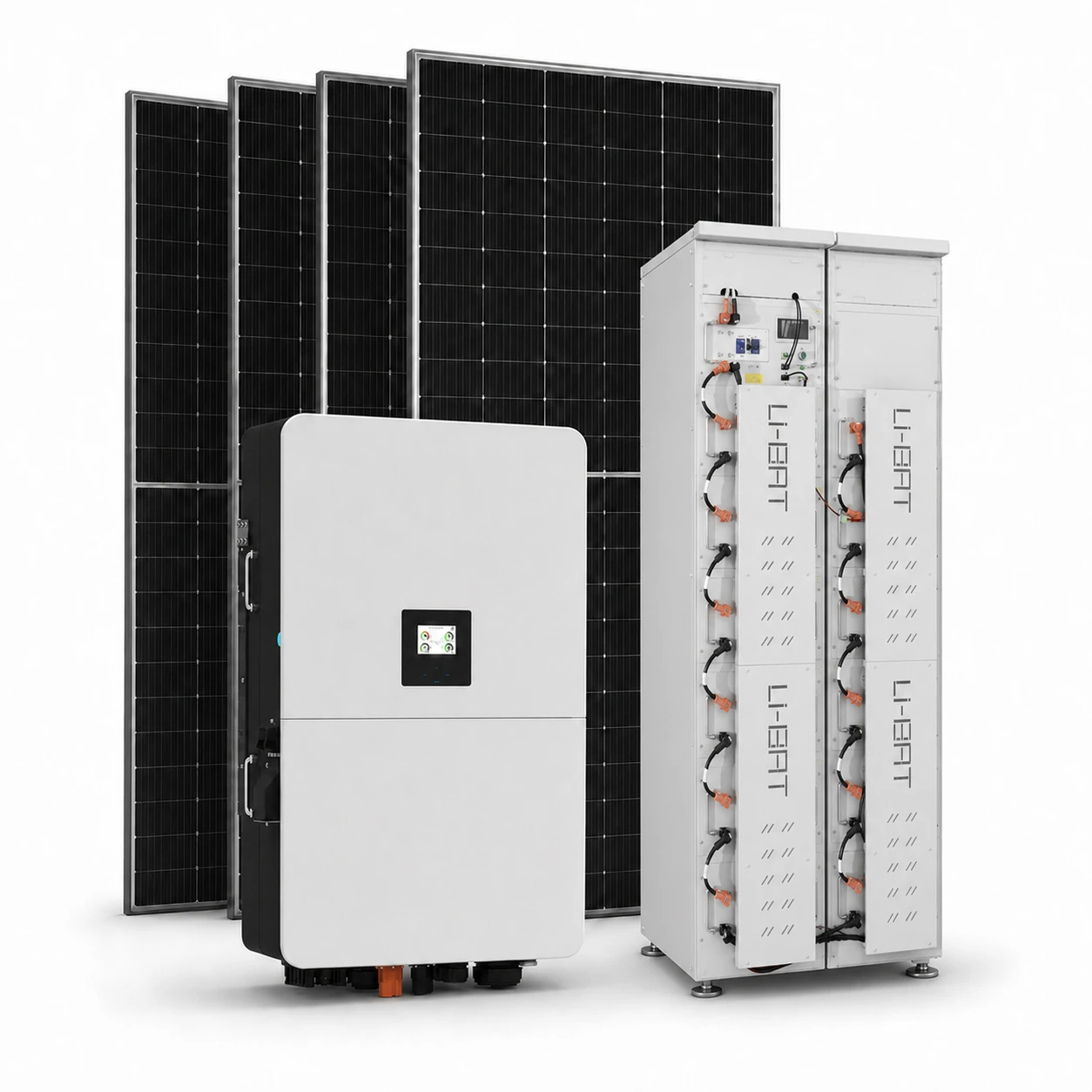

100kW-200kWh/200kW-400kWh C&I Hybrid Solar Energy Storage System
The hybrid inverter series is meticulously engineered to deliver superior performance for modern solar power systems. It handles dynamic power requirements while supporting reliable, flexible and efficient energy management.
| Brand | DEYE + NOVASUN |
|---|---|
| Max. Efficiency | 97.6% |
| Power Range | 100kW/200kW |
| System Type | Hybrid System |
| Certification | CE, TUV, UL, IEC, MSDS |
| Warranty | 25 years |
Product Description
A complete commercial and industrial hybrid solar energy storage solution available as a 100kW inverter with 200kWh battery storage or a 200kW inverter with 400kWh battery storage. The system combines N-type solar modules, rack-mounted lithium iron phosphate batteries and hybrid power conversion with the required balance-of-system components.

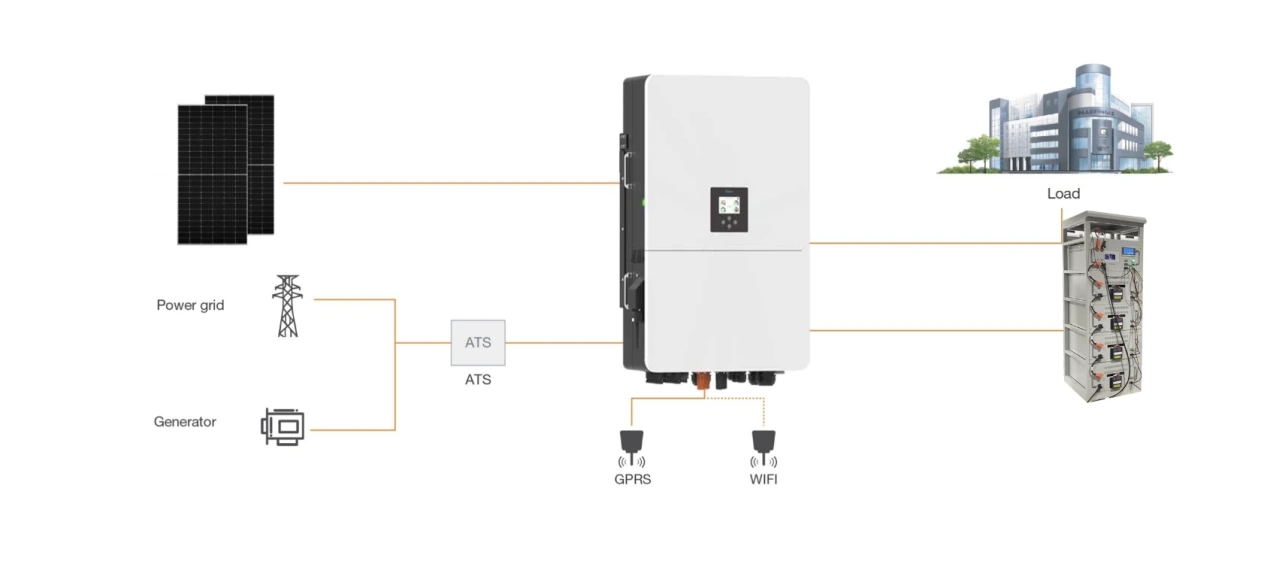

System Configuration
| Item | Model | Description | Quantity |
|---|---|---|---|
| 1 | Solar Panel | N-Type Mono 655W | 153 / 306 |
| 2 | Lithium Iron Phosphate Battery | Rack Battery | 200kWh / 400kWh |
| 3 | Hybrid Inverter | 50kW | 2 pcs / 4 pcs |
| 4 | Mounting Support | Roof / Ground | 1 set |
| 5 | Cable | 4mm² PV Cable | 1000 m |
| 6 | Connector | Solar Connector | 40 pairs |

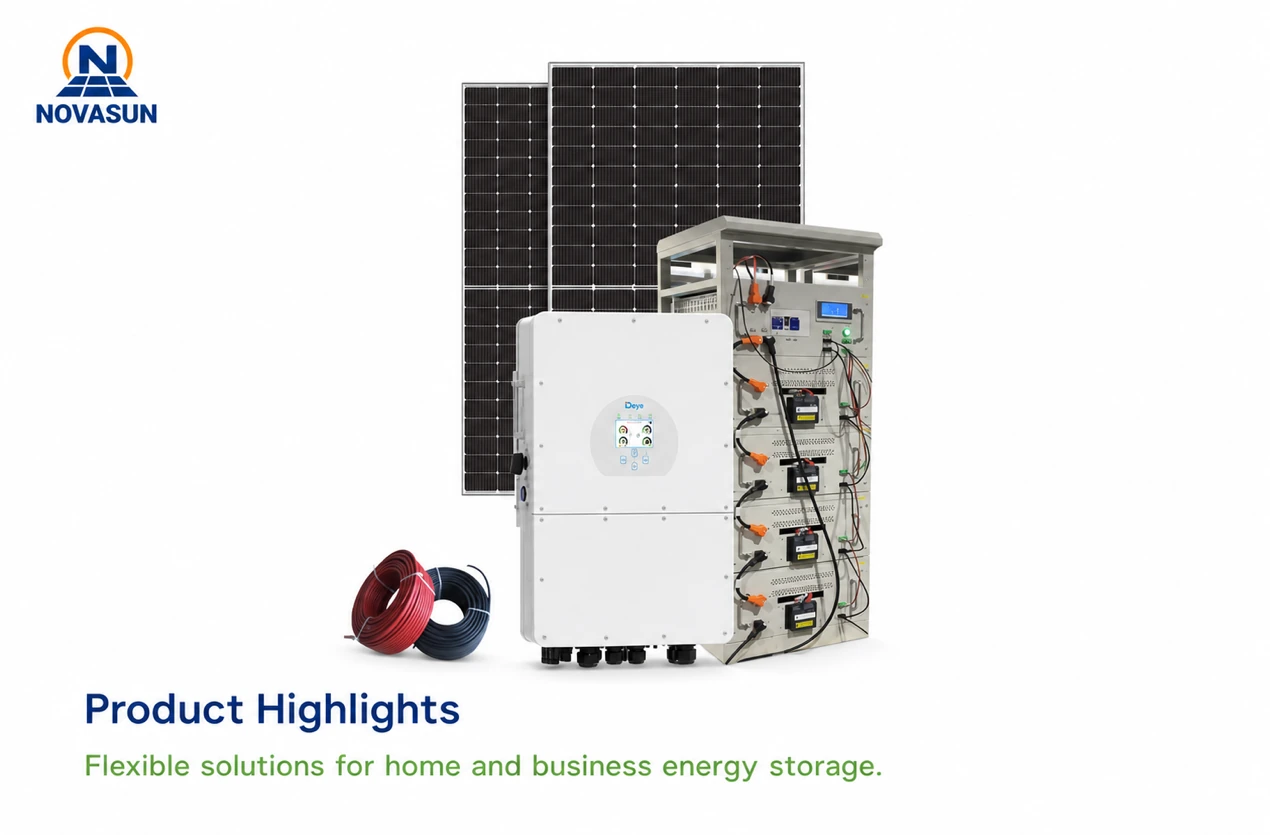

Product Highlights
Packing & Delivery
Application Examples

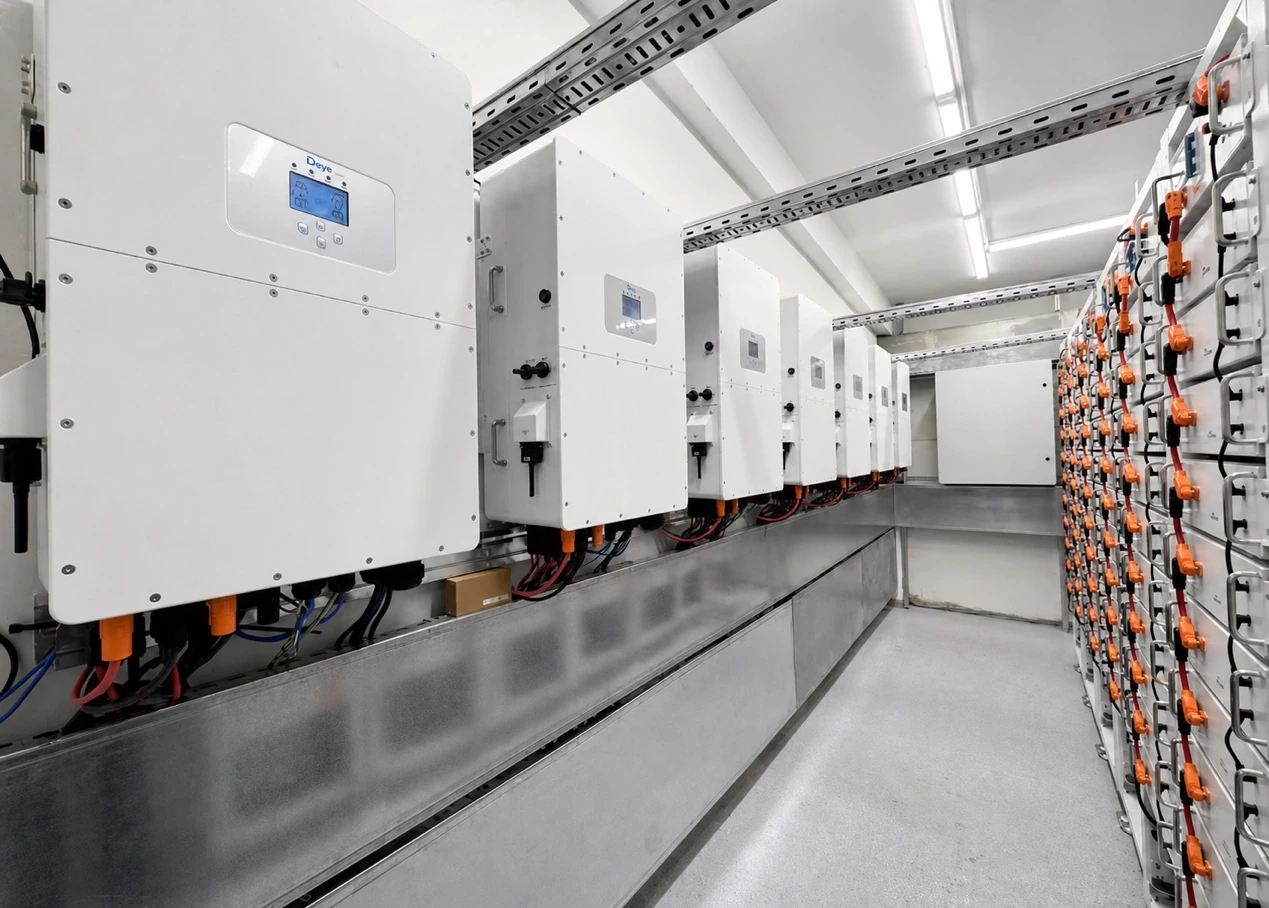

Commercial and industrial hybrid solar energy storage installation with multiple inverters and rack-mounted battery banks.
Start an Inquiry
Tell us your target power, battery capacity, site load, operating mode and delivery market. Our team will configure a suitable 100kW or 200kW C&I hybrid solar energy storage system.
