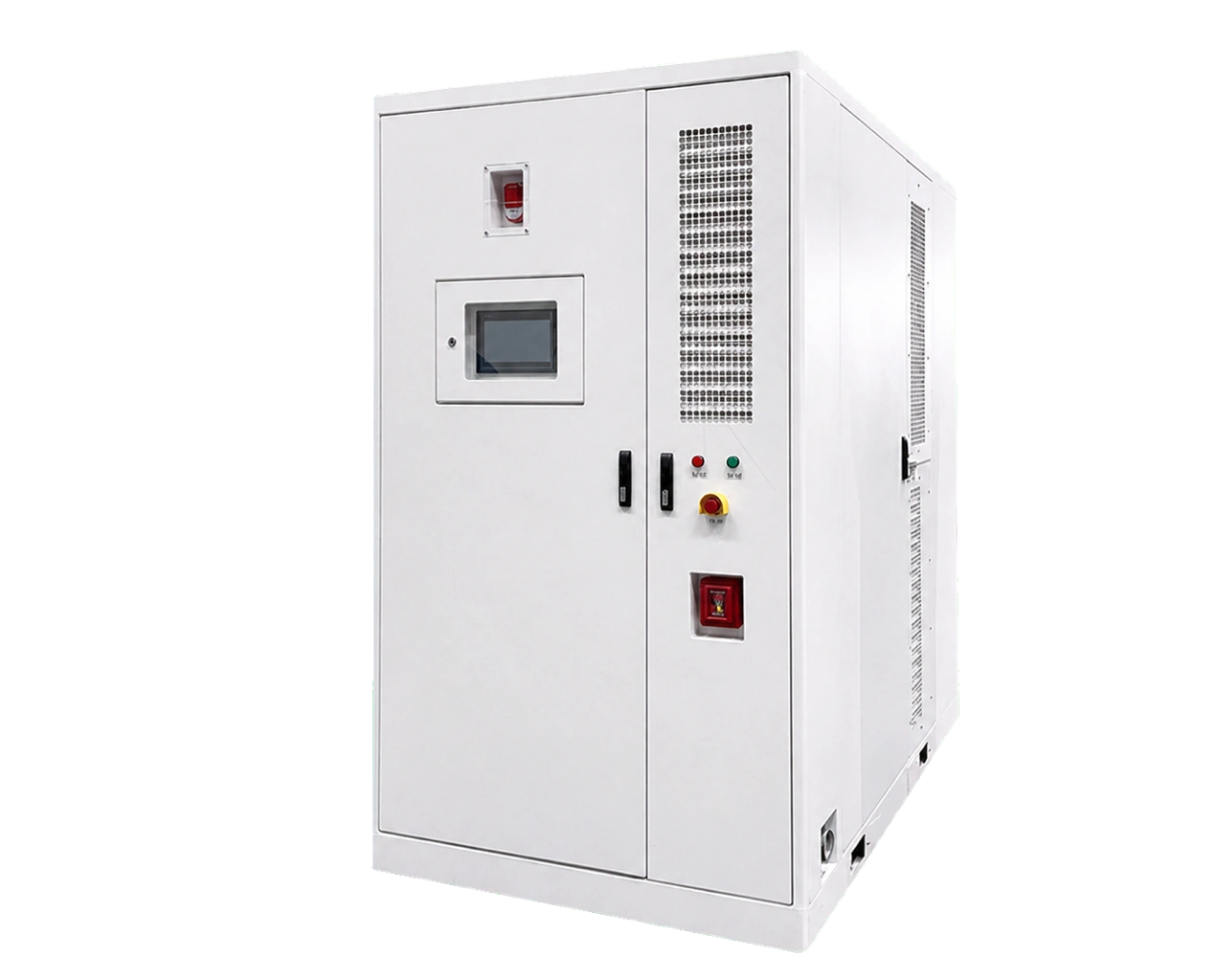

125kW/261kWh & 250kW/514kWh Liquid-Cooled C&I Solar Energy Storage System
This 125kW and 250kW all-in-one liquid-cooled solar energy storage system integrates high-performance lithium batteries, power conversion and energy management in one outdoor cabinet for stable operation and optimized thermal performance.
| Brand | NOVASUN |
|---|---|
| System Type | PCS + Battery |
| Nominal Voltage | 728V–923V |
| Protection Level | IP54 |
| Cooling Method | Liquid Cooling |
| Design Life | 10+ Years |
Product Description
Available as a 125kW/261kWh or 250kW/514kWh configuration, the outdoor cabinet combines battery storage, power conversion, liquid cooling, fire protection and cloud-connected energy management. Its pre-installed all-in-one design reduces on-site installation work and floor-space requirements.
Product Datasheet

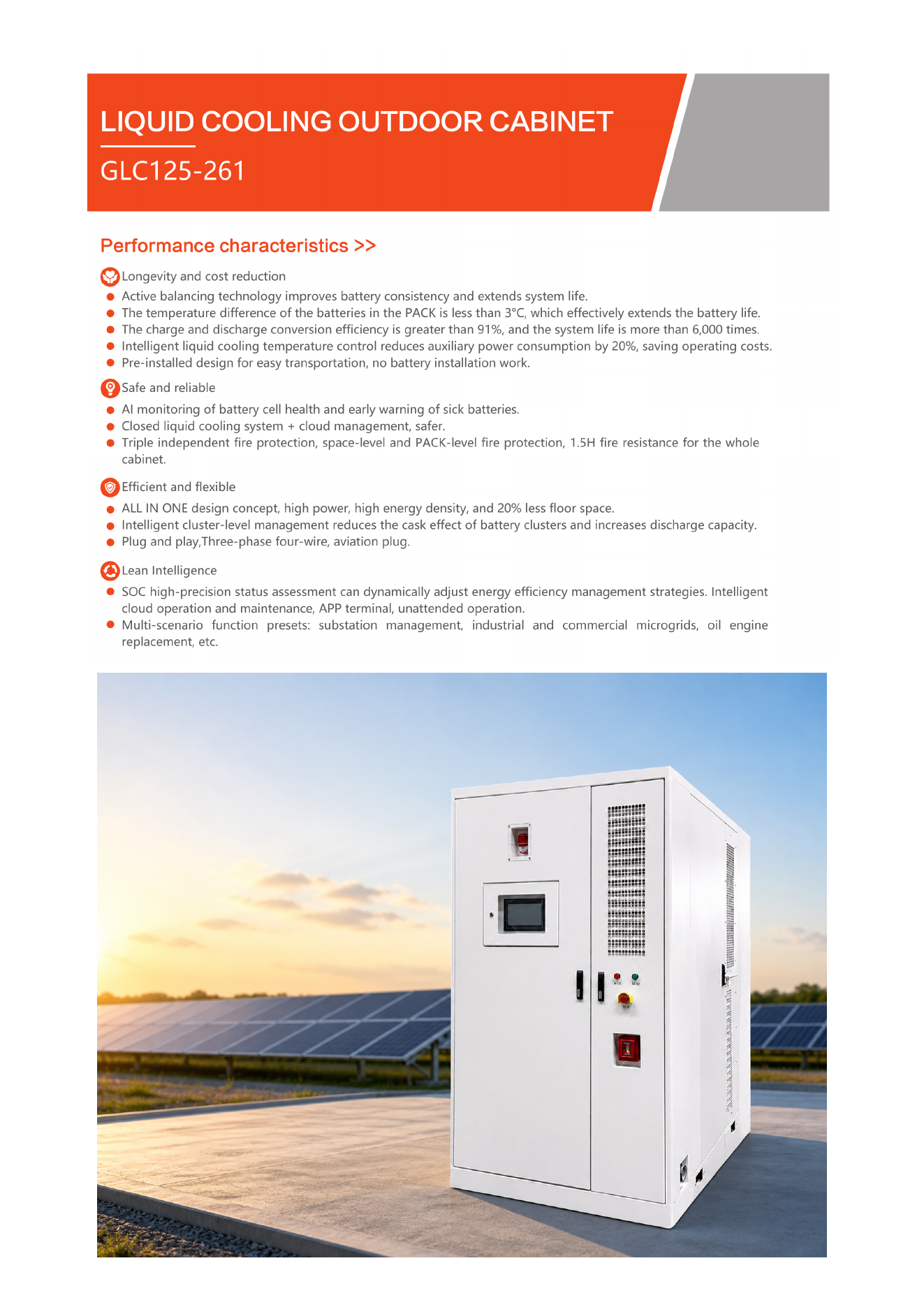

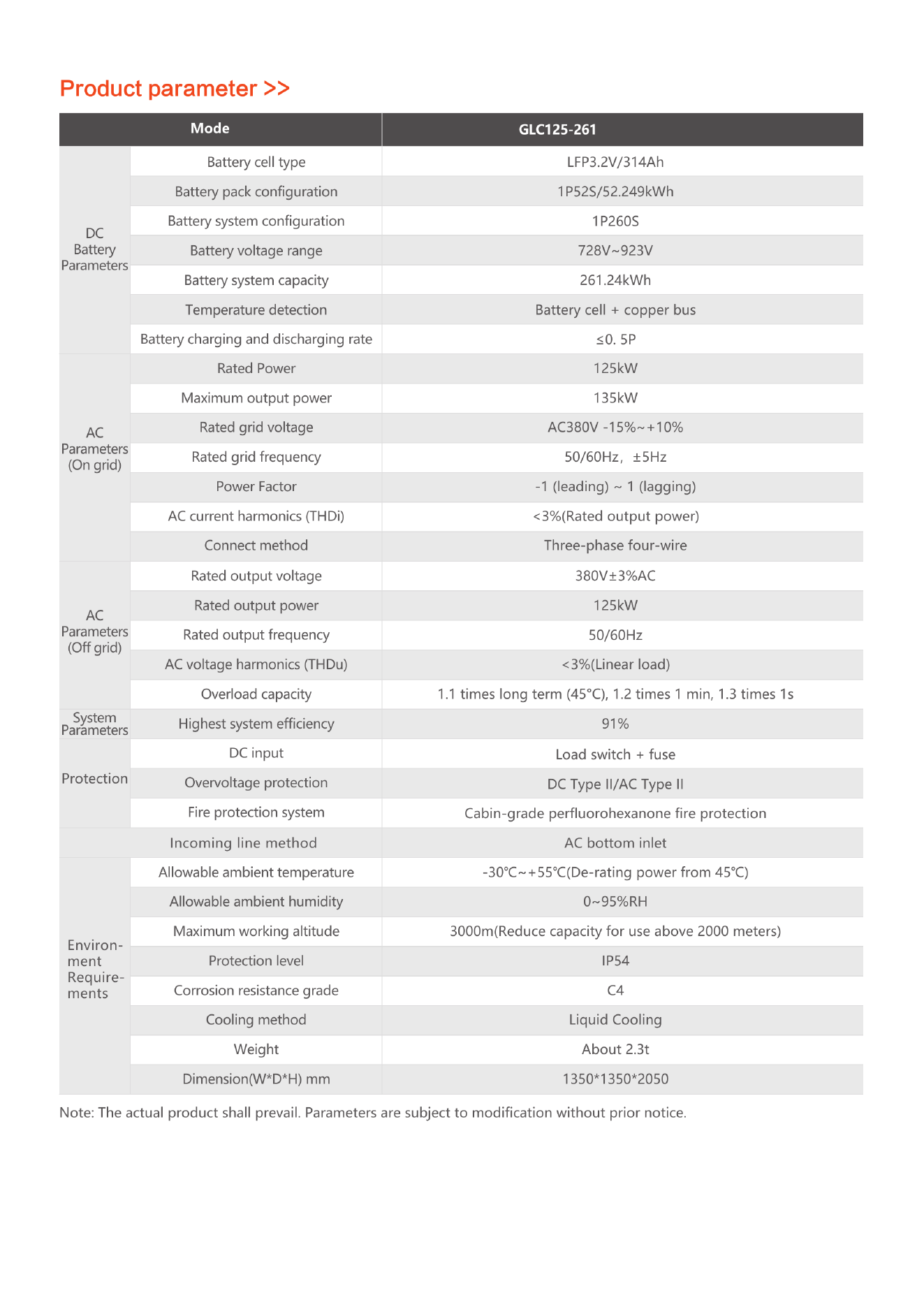

The complete supplied two-page GLC125-261 liquid-cooled outdoor cabinet datasheet is reproduced below as a separate document, including all performance characteristics and product parameters.
Start an Inquiry
Tell us your required power, storage capacity, grid conditions, operating mode and delivery market. Our team will configure a suitable liquid-cooled C&I solar energy storage system.
