250kW/500kWh Hybrid Solar Microgrid for Remote Sites & Islands
MPS series hybrid inverters integrate PV controllers, energy storage converters and automatic on/off-grid switching. Flexible PV capacity and strong load adaptability make this microgrid suitable for remote areas and islands with weak grids.
| Brand | NOVASUN |
|---|---|
| BMS Communication | RS485, CAN |
| Power Range | 250kW |
| System Type | Hybrid System |
| EMS Communication | RS485, TCP/IP |
| Warranty | 25 years |
Product Description
The integrated MPS design reduces deployment time and installation cost while allowing flexible PV sizing. It supports PV, battery storage, utility grid, diesel generation and priority loads, with protection and communication functions that help maintain stable power in remote locations and island microgrids.

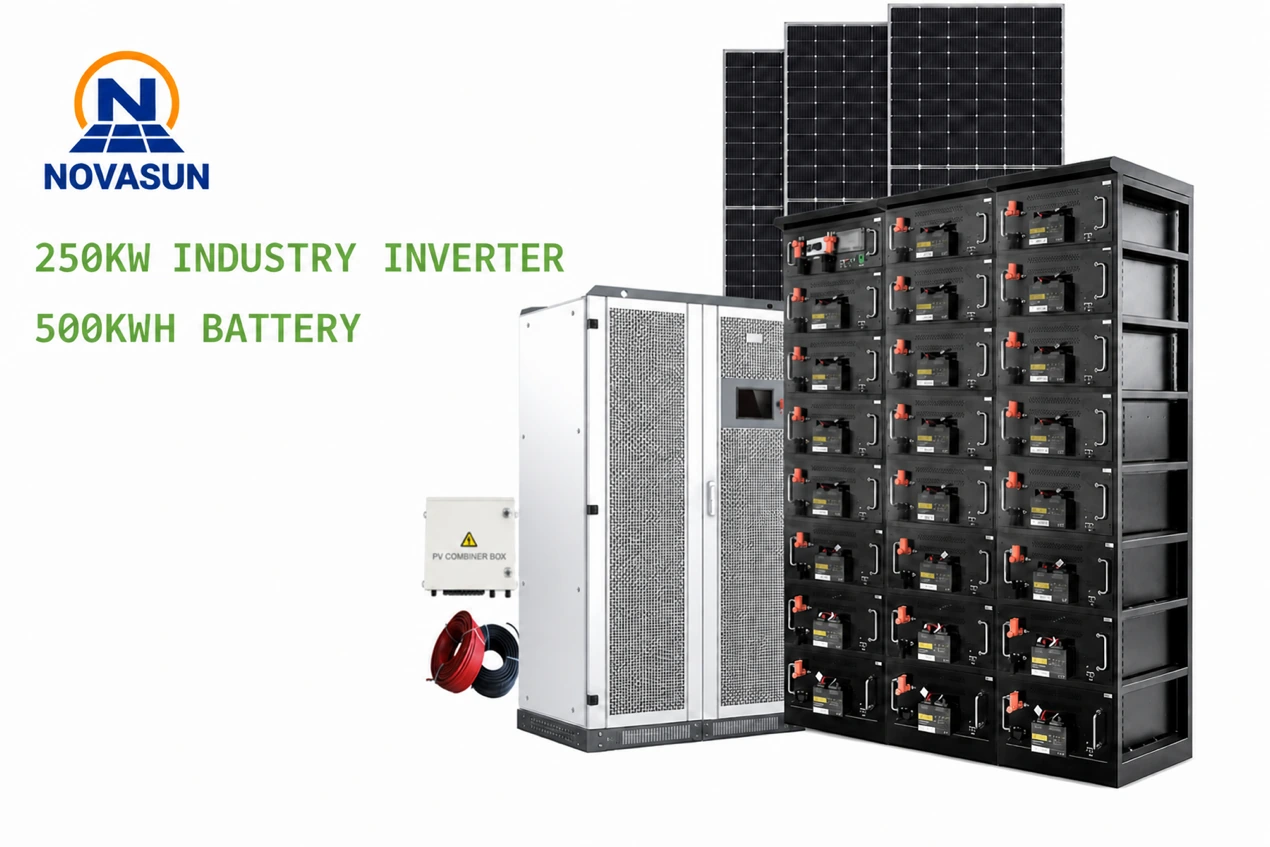

250kW Energy Storage Solar Power System Components
| No. | Item | Model / Description | Quantity |
|---|---|---|---|
| 1 | Solar Panel | Mono 655W solar panel | 391 pieces |
| 2 | Combiner Box | Customized | 1 set |

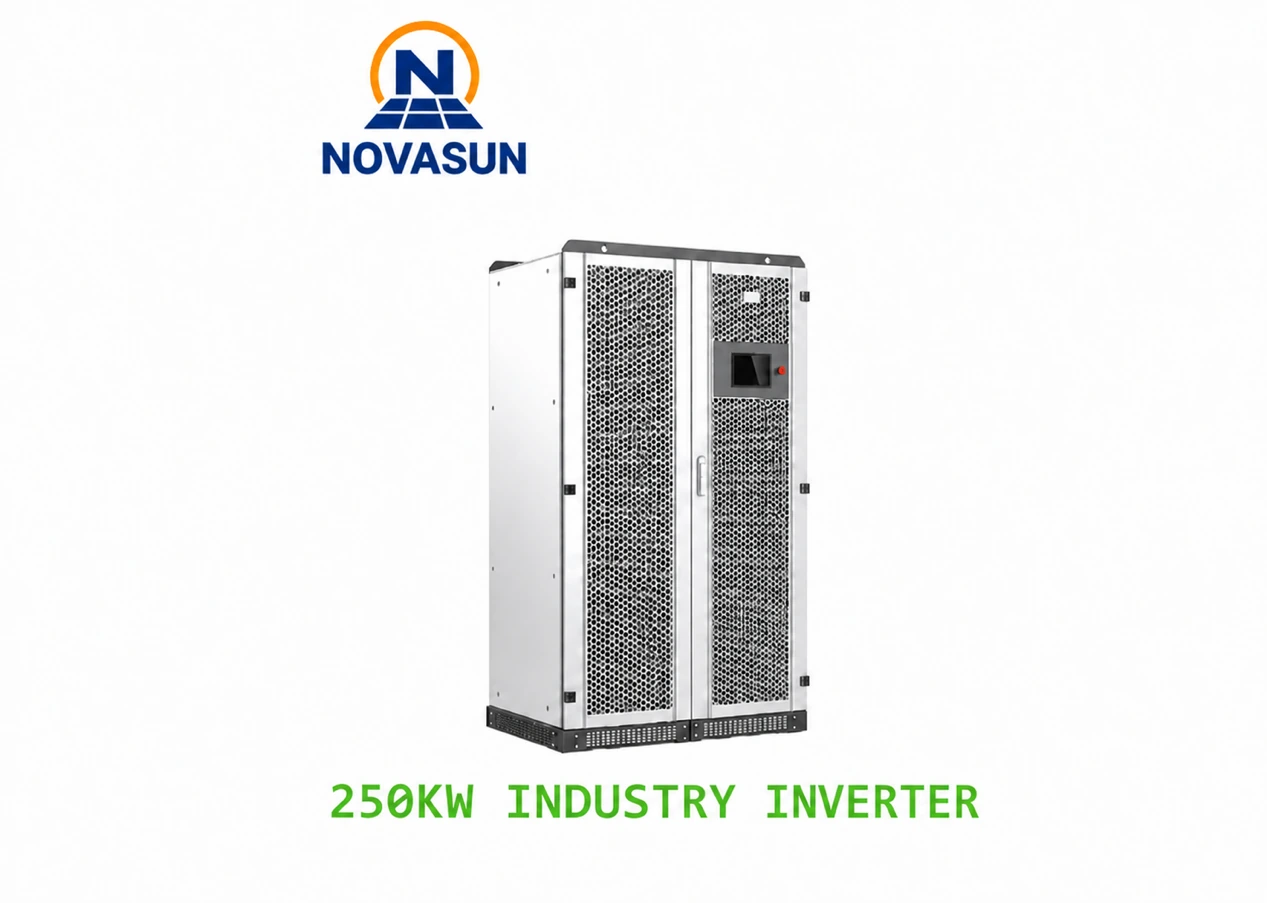

| 3 | Hybrid Inverter | 250kW Standard | 1 piece |
| 4 | Battery | Lithium Battery | 500kWh |
| 5 | Mounting Support | Pitched roof, flat roof or ground mounting; customizable | 1 set |
| 6 | Cable | Single-core 4mm² PV cable | 2000 |
| 7 | Connector | PV connector | 200 pairs |

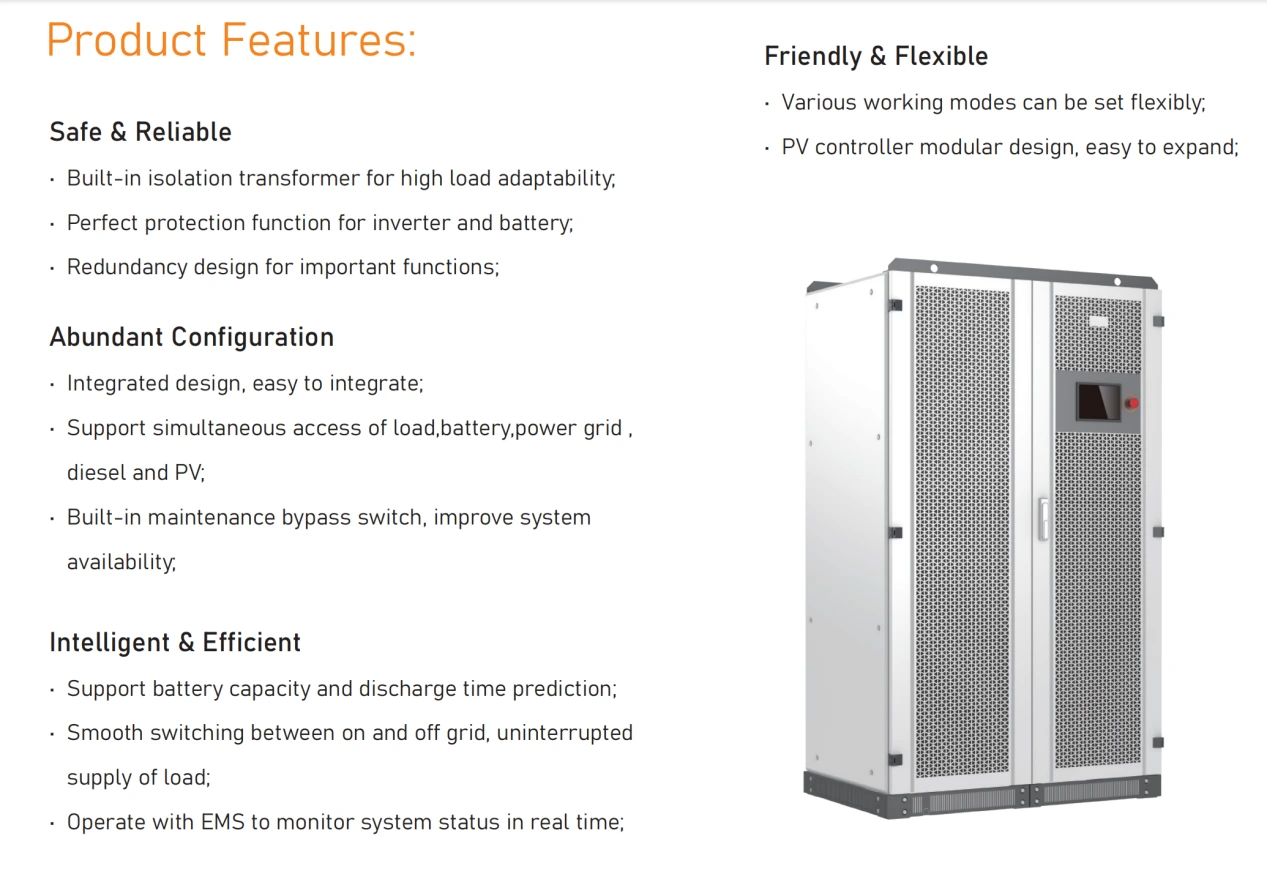

Product Features
Technical Specifications
| Technical Specification | MPS0030 | MPS0050 | MPS0100 | MPS0150 | MPS0250 | MPS0500 |
|---|---|---|---|---|---|---|
| AC (On-Grid) | ||||||
| Max. Output Power | 33kVA | 55kVA | 110kVA | 165kVA | 275kVA | 550kVA |
| Rated Power | 30kW | 50kW | 100kW | 150kW | 250kW | 500kW |
| Rated Voltage | 400V | 400V | 400V | 400V | 400V | 400V |
| Rated Current | 43A | 72A | 144A | 216A | 361A | 722A |
| Voltage Range | 320–460V | 320–460V | 320–460V | 320–460V | 320–460V | 320–460V |
| Rated Frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| Frequency Range | 45–55/55–65Hz | 45–55/55–65Hz | 45–55/55–65Hz | 45–55/55–65Hz | 45–55/55–65Hz | 45–55/55–65Hz |
| THDi | <3% | <3% | <3% | <3% | <3% | <3% |
| Power Factor | 1 lagging–1 leading | 1 lagging–1 leading | 1 lagging–1 leading | 1 lagging–1 leading | 1 lagging–1 leading | 1 lagging–1 leading |
| AC Connection | 3W+N+PE | 3W+N+PE | 3W+N+PE | 3W+N+PE | 3W+N+PE | 3W+N+PE |
| Transformer Ratio | 100/400 | 200/400 | 270/400 | 270/400 | 270/400 | 315/400 |
| AC (Off-Grid) | ||||||
| Max. Output Power | 33kVA | 55kVA | 110kVA | 165kVA | 275kVA | 550kVA |
| Rated Power | 30kW | 50kW | 100kW | 150kW | 250kW | 500kW |
| Rated Voltage | 400V | 400V | 400V | 400V | 400V | 400V |
| Rated Current | 43A | 72A | 144A | 216A | 361A | 722A |
| THDu | ≤1% linear; ≤5% nonlinear | ≤1% linear; ≤5% nonlinear | ≤1% linear; ≤5% nonlinear | ≤1% linear; ≤5% nonlinear | ≤1% linear; ≤5% nonlinear | ≤1% linear; ≤5% nonlinear |
| Rated Frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| Overload Capacity | 110% long-term | 110% long-term | 110% long-term | 110% long-term | 110% long-term | 110% long-term |
| Photovoltaic Input | ||||||
| Max. PV Input Voltage | 1000V | 1000V | 1000V | 1000V | 1000V | 1000V |
| Max. PV Power | 60/120kW | 60/120kW | 120/180/240kW | 120/180/240kW | 300/360kW | 600/660/720kW |
| MPPT Voltage Range | 250–850V | 250–850V | 250–850V | 250–850V | 250–850V | 250–850V |
| MPPT Full-Load Voltage Range | 450–850V | 450–850V | 450–850V | 450–850V | 450–850V | 450–850V |
| Battery | ||||||
| Battery Voltage Range | 250–850V | 320–850V | 420–850V | 420–850V | 420–850V | 500–850V |
| Max. Charging Power | 60/120kW | 60/120kW | 120/180/240kW | 120/180/240kW | 300/360kW | 600/660/720kW |
| General Data | ||||||
| Dimensions (W×D×H) | 800×800×1900mm | 800×800×1900mm | 1200×800×2050mm | 1200×800×2050mm | (600×720×2050mm)×1 + 1200×800×2050mm | (600×720×2050mm)×2 + 1600×1050×2050mm |
| Weight | 620/650kg | 720/750kg | 1120/1150/1180kg | 1250/1280/1310kg | 1980/2010kg | 3265/3295/3325kg |
| Operating Temperature | −30°C–55°C | −30°C–55°C | −30°C–55°C | −30°C–55°C | −30°C–55°C | −30°C–55°C |
| Relative Humidity | 0–95%, non-condensing | 0–95%, non-condensing | 0–95%, non-condensing | 0–95%, non-condensing | 0–95%, non-condensing | 0–95%, non-condensing |
| Ingress Protection | IP20 | IP20 | IP20 | IP20 | IP20 | IP20 |
| Noise Emission | <70dB | <70dB | <70dB | <70dB | <70dB | <70dB |
| Altitude | 5000m (>3000m derating) | 5000m (>3000m derating) | 5000m (>3000m derating) | 5000m (>3000m derating) | 5000m (>3000m derating) | 5000m (>3000m derating) |
| Cooling | Air cooling | Air cooling | Air cooling | Air cooling | Air cooling | Air cooling |
| Display & Communication | ||||||
| Display | LCD touch-screen | LCD touch-screen | LCD touch-screen | LCD touch-screen | LCD touch-screen | LCD touch-screen |
| BMS Communication | RS485, CAN | RS485, CAN | RS485, CAN | RS485, CAN | RS485, CAN | RS485, CAN |
| EMS Communication | RS485, TCP/IP | RS485, TCP/IP | RS485, TCP/IP | RS485, TCP/IP | RS485, TCP/IP | RS485, TCP/IP |
| Certificates | EN62109-1/-2, EN62477-1, EN61000-6-2, EN61000-6-4, NRS097-2-1:2017, IEC61727, IEC62116, IEC61683 | EN62109-1/-2, EN62477-1, EN61000-6-2, EN61000-6-4, NRS097-2-1:2017, IEC61727, IEC62116, IEC61683 | EN62109-1/-2, EN62477-1, EN61000-6-2, EN61000-6-4, NRS097-2-1:2017, IEC61727, IEC62116, IEC61683 | EN62109-1/-2, EN62477-1, EN61000-6-2, EN61000-6-4, NRS097-2-1:2017, IEC61727, IEC62116, IEC61683 | EN62109-1/-2, EN62477-1, EN61000-6-2, EN61000-6-4, NRS097-2-1:2017, IEC61727, IEC62116, IEC61683 | EN62109-1/-2, EN62477-1, EN61000-6-2, EN61000-6-4, NRS097-2-1:2017, IEC61727, IEC62116, IEC61683 |

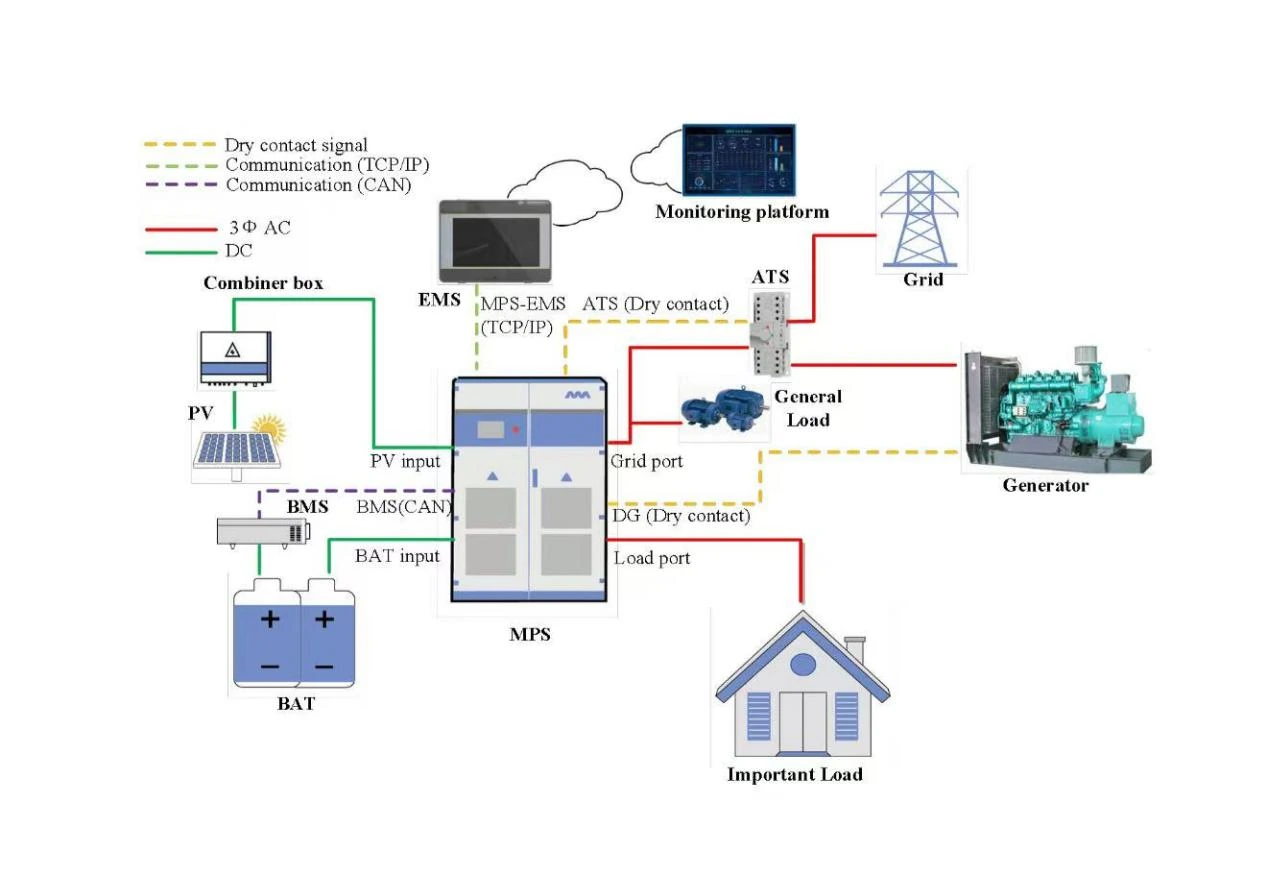

System Topology
Application Examples

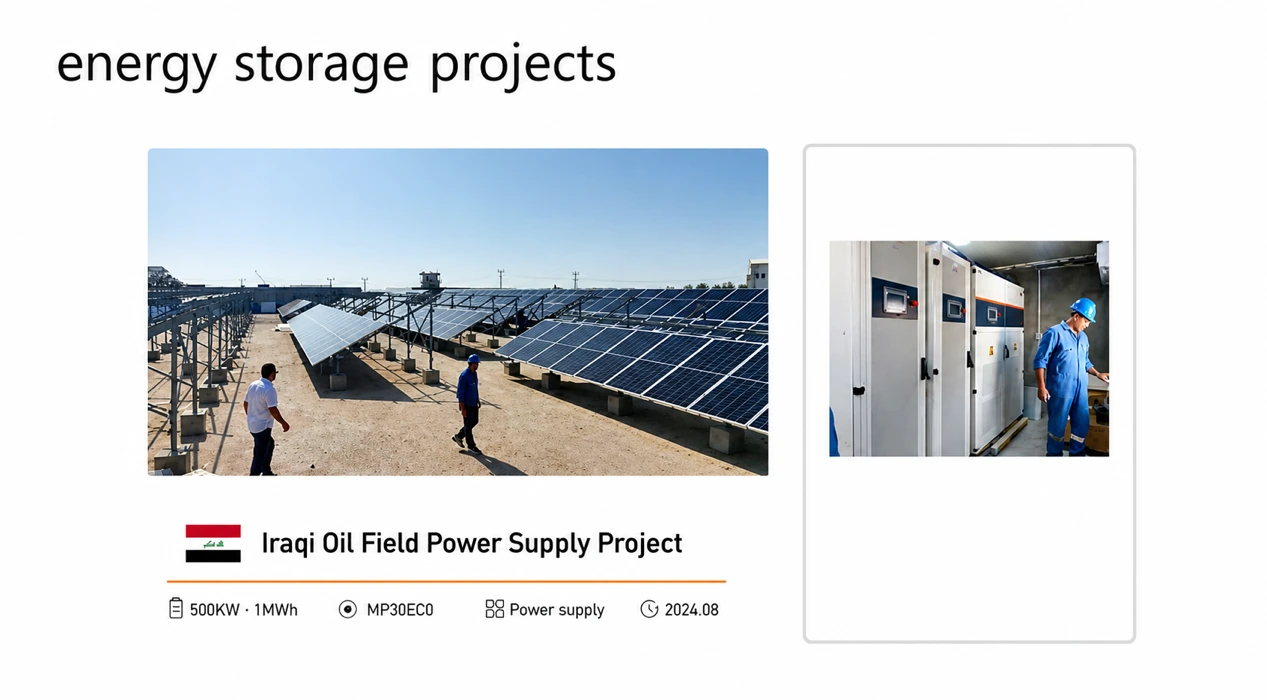

500kW / 1MWh Iraqi Oil Field Power Supply Project · MP30EC0 · August 2024
