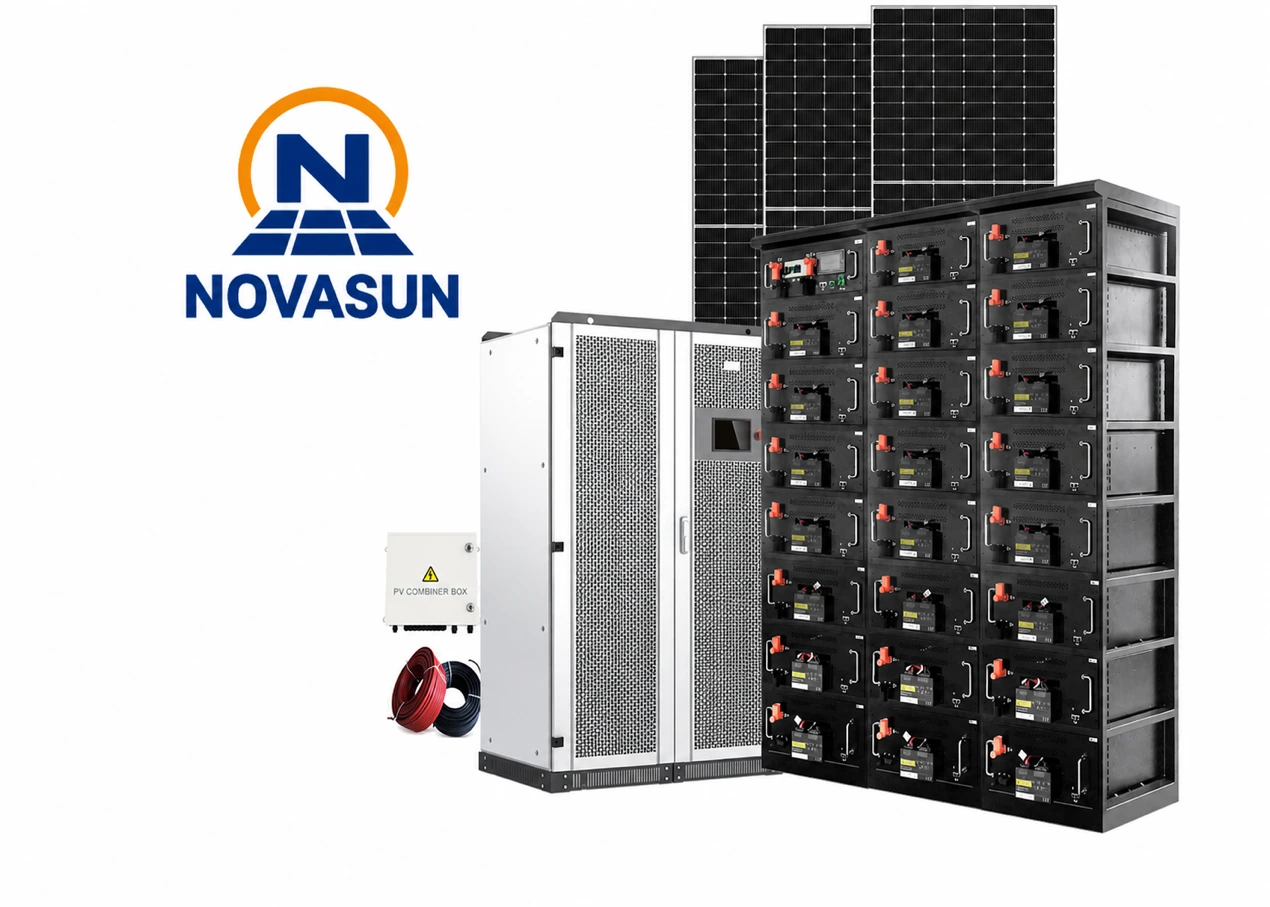

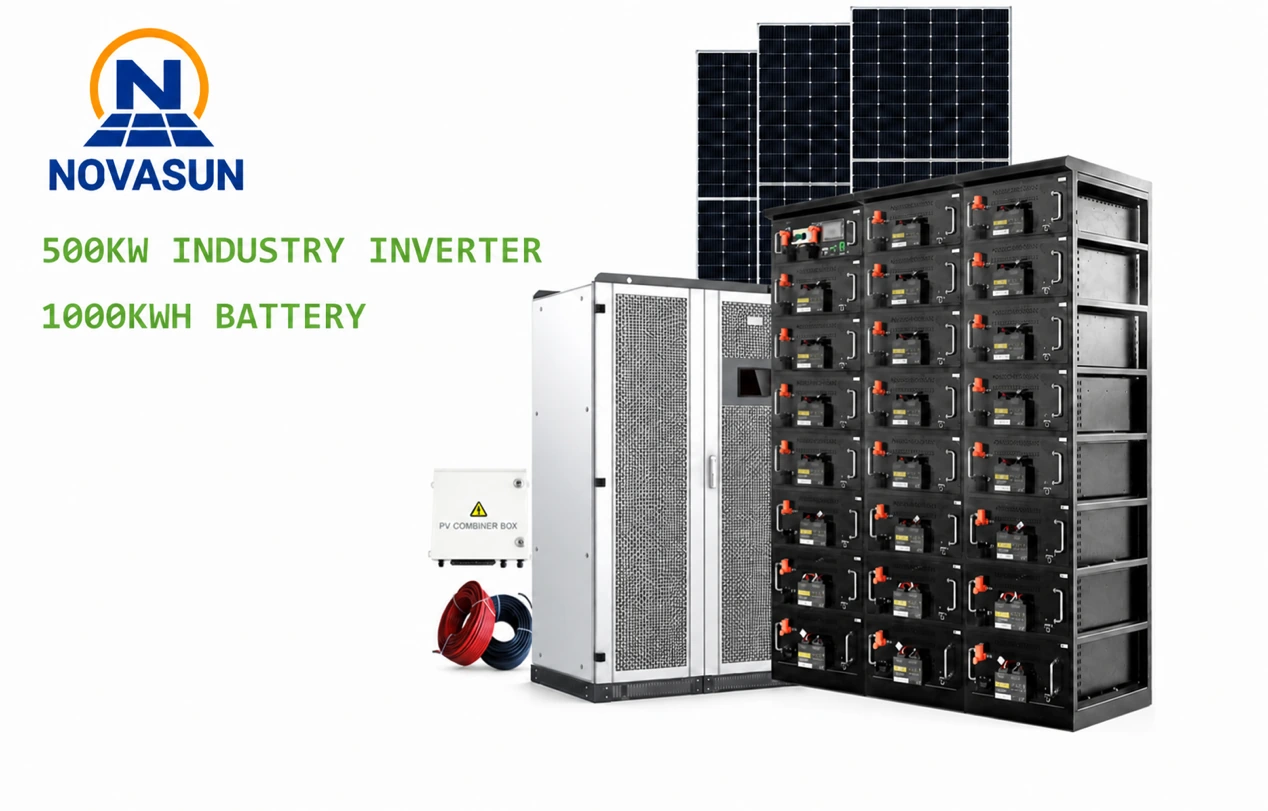

500kW/1000kWh Industrial Hybrid Solar Energy Storage System
This customized 500kW industrial energy storage system combines a 500kW MPS hybrid inverter with a 1000kWh lithium battery. Its integrated PV control, energy conversion and automatic on/off-grid switching support reliable operation for industrial sites, remote areas and island microgrids.
| Brand | NOVASUN |
|---|---|
| BMS Communication | RS485, CAN |
| Power Range | 500kW |
| System Type | Hybrid System |
| EMS Communication | RS485, TCP/IP |
| Warranty | 25 years |
Product Description
The integrated MPS design improves deployment efficiency and reduces installation cost while allowing flexible PV capacity. It supports PV, battery storage, utility grid, diesel generation and priority loads, with strong load adaptability, automatic operating-mode switching and complete protection for stable industrial power supply.
500kW Energy Storage Solar Power System Components
| No. | Item | Model / Description | Quantity |
|---|---|---|---|
| 1 | Solar Panel | Mono 655W solar panel | 782 pieces |
| 2 | Combiner Box | Customized | 1 set |
| 3 | Hybrid Inverter | 500kW Standard | 1 piece |
| 4 | Battery | Lithium Battery | 1000kWh |
| 5 | Mounting Support | Pitched roof, flat roof or ground mounting; customizable | 1 set |
| 6 | Cable | Single-core 4mm² PV cable | 4000 |
| 7 | Connector | PV connector | 400 pairs |

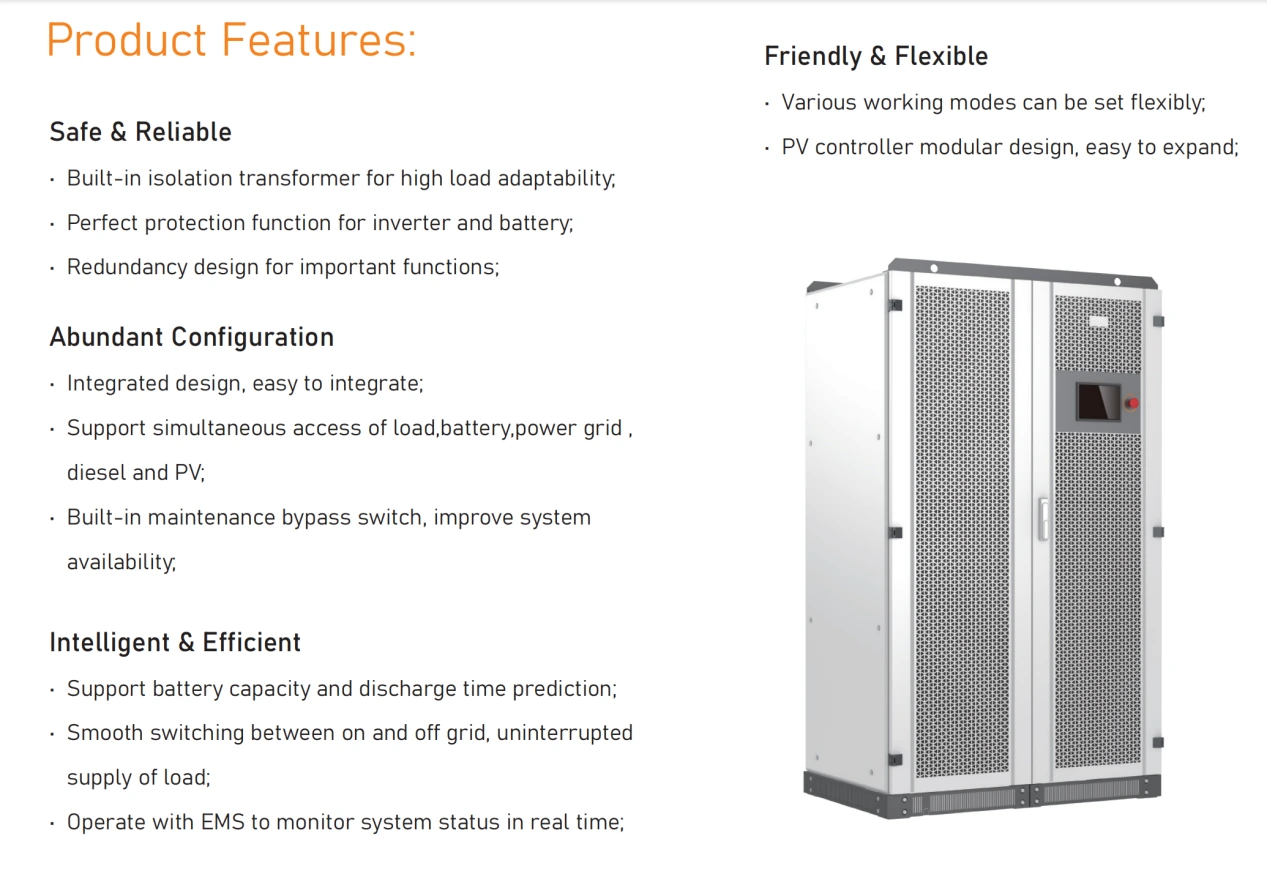

Product Features
Technical Specifications
| Technical Specification | MPS0030 | MPS0050 | MPS0100 | MPS0150 | MPS0250 | MPS0500 |
|---|---|---|---|---|---|---|
| AC (On-Grid) | ||||||
| Max. Output Power | 33kVA | 55kVA | 110kVA | 165kVA | 275kVA | 550kVA |
| Rated Power | 30kW | 50kW | 100kW | 150kW | 250kW | 500kW |
| Rated Voltage | 400V | 400V | 400V | 400V | 400V | 400V |
| Rated Current | 43A | 72A | 144A | 216A | 361A | 722A |
| Voltage Range | 320–460V | 320–460V | 320–460V | 320–460V | 320–460V | 320–460V |
| Rated Frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| Frequency Range | 45–55/55–65Hz | 45–55/55–65Hz | 45–55/55–65Hz | 45–55/55–65Hz | 45–55/55–65Hz | 45–55/55–65Hz |
| THDi | <3% | <3% | <3% | <3% | <3% | <3% |
| Power Factor | 1 lagging–1 leading | 1 lagging–1 leading | 1 lagging–1 leading | 1 lagging–1 leading | 1 lagging–1 leading | 1 lagging–1 leading |
| AC Connection | 3W+N+PE | 3W+N+PE | 3W+N+PE | 3W+N+PE | 3W+N+PE | 3W+N+PE |
| Transformer Ratio | 100/400 | 200/400 | 270/400 | 270/400 | 270/400 | 315/400 |
| AC (Off-Grid) | ||||||
| Max. Output Power | 33kVA | 55kVA | 110kVA | 165kVA | 275kVA | 550kVA |
| Rated Power | 30kW | 50kW | 100kW | 150kW | 250kW | 500kW |
| Rated Voltage | 400V | 400V | 400V | 400V | 400V | 400V |
| Rated Current | 43A | 72A | 144A | 216A | 361A | 722A |
| THDu | ≤1% linear; ≤5% nonlinear | ≤1% linear; ≤5% nonlinear | ≤1% linear; ≤5% nonlinear | ≤1% linear; ≤5% nonlinear | ≤1% linear; ≤5% nonlinear | ≤1% linear; ≤5% nonlinear |
| Rated Frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| Overload Capacity | 110% long-term | 110% long-term | 110% long-term | 110% long-term | 110% long-term | 110% long-term |
| Photovoltaic Input | ||||||
| Max. PV Input Voltage | 1000V | 1000V | 1000V | 1000V | 1000V | 1000V |
| Max. PV Power | 60/120kW | 60/120kW | 120/180/240kW | 120/180/240kW | 300/360kW | 600/660/720kW |
| MPPT Voltage Range | 250–850V | 250–850V | 250–850V | 250–850V | 250–850V | 250–850V |
| MPPT Full-Load Voltage Range | 450–850V | 450–850V | 450–850V | 450–850V | 450–850V | 450–850V |
| Battery | ||||||
| Battery Voltage Range | 250–850V | 320–850V | 420–850V | 420–850V | 420–850V | 500–850V |
| Max. Charging Power | 60/120kW | 60/120kW | 120/180/240kW | 120/180/240kW | 300/360kW | 600/660/720kW |
| General Data | ||||||
| Dimensions (W×D×H) | 800×800×1900mm | 800×800×1900mm | 1200×800×2050mm | 1200×800×2050mm | (600×720×2050mm)×1 + 1200×800×2050mm | (600×720×2050mm)×2 + 1600×1050×2050mm |
| Weight | 620/650kg | 720/750kg | 1120/1150/1180kg | 1250/1280/1310kg | 1980/2010kg | 3265/3295/3325kg |
| Operating Temperature | −30°C–55°C | −30°C–55°C | −30°C–55°C | −30°C–55°C | −30°C–55°C | −30°C–55°C |
| Relative Humidity | 0–95%, non-condensing | 0–95%, non-condensing | 0–95%, non-condensing | 0–95%, non-condensing | 0–95%, non-condensing | 0–95%, non-condensing |
| Ingress Protection | IP20 | IP20 | IP20 | IP20 | IP20 | IP20 |
| Noise Emission | <70dB | <70dB | <70dB | <70dB | <70dB | <70dB |
| Altitude | 5000m (>3000m derating) | 5000m (>3000m derating) | 5000m (>3000m derating) | 5000m (>3000m derating) | 5000m (>3000m derating) | 5000m (>3000m derating) |
| Cooling | Air cooling | Air cooling | Air cooling | Air cooling | Air cooling | Air cooling |
| Display & Communication | ||||||
| Display | LCD touch-screen | LCD touch-screen | LCD touch-screen | LCD touch-screen | LCD touch-screen | LCD touch-screen |
| BMS Communication | RS485, CAN | RS485, CAN | RS485, CAN | RS485, CAN | RS485, CAN | RS485, CAN |
| EMS Communication | RS485, TCP/IP | RS485, TCP/IP | RS485, TCP/IP | RS485, TCP/IP | RS485, TCP/IP | RS485, TCP/IP |
| Certificates | EN62109-1/-2, EN62477-1, EN61000-6-2, EN61000-6-4, NRS097-2-1:2017, IEC61727, IEC62116, IEC61683 | EN62109-1/-2, EN62477-1, EN61000-6-2, EN61000-6-4, NRS097-2-1:2017, IEC61727, IEC62116, IEC61683 | EN62109-1/-2, EN62477-1, EN61000-6-2, EN61000-6-4, NRS097-2-1:2017, IEC61727, IEC62116, IEC61683 | EN62109-1/-2, EN62477-1, EN61000-6-2, EN61000-6-4, NRS097-2-1:2017, IEC61727, IEC62116, IEC61683 | EN62109-1/-2, EN62477-1, EN61000-6-2, EN61000-6-4, NRS097-2-1:2017, IEC61727, IEC62116, IEC61683 | EN62109-1/-2, EN62477-1, EN61000-6-2, EN61000-6-4, NRS097-2-1:2017, IEC61727, IEC62116, IEC61683 |

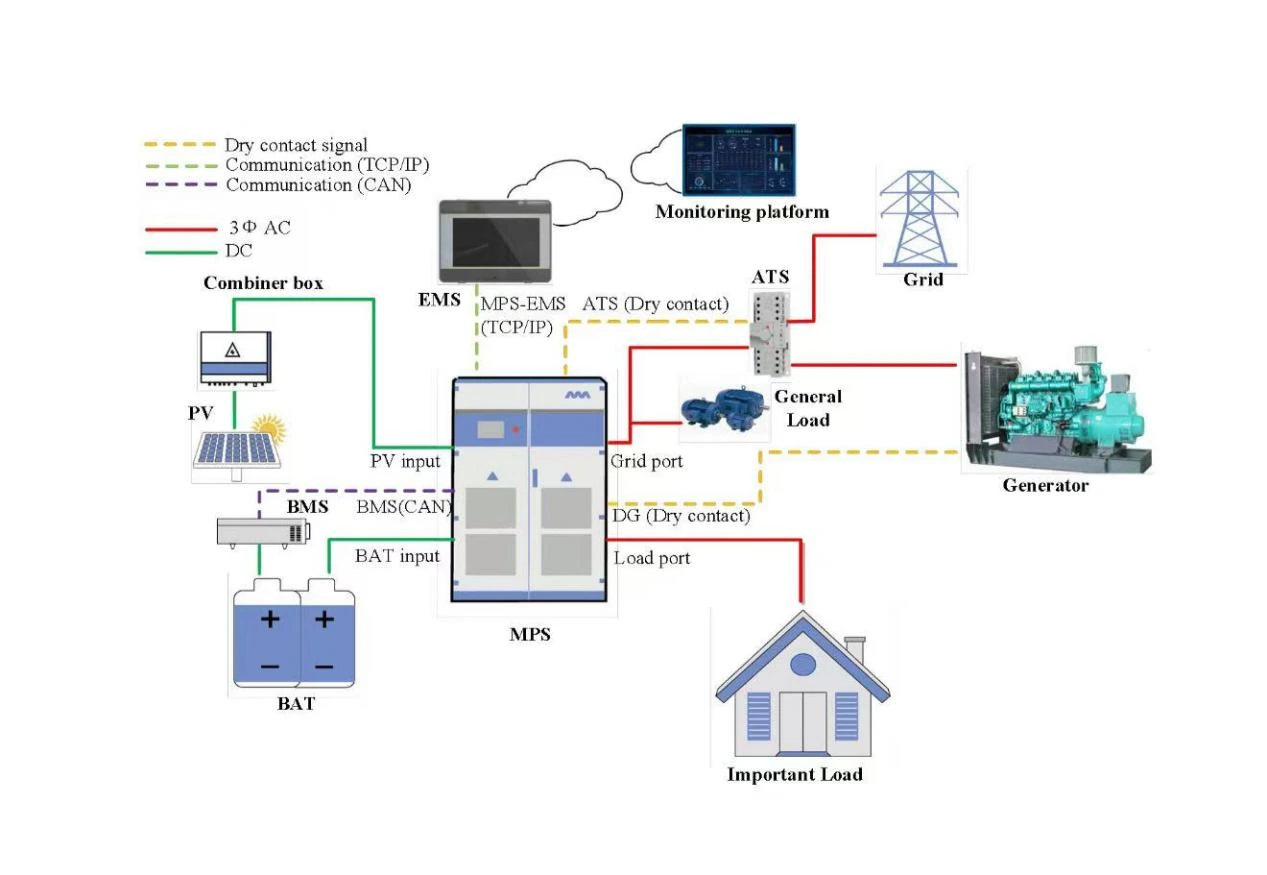

System Topology
Application Examples

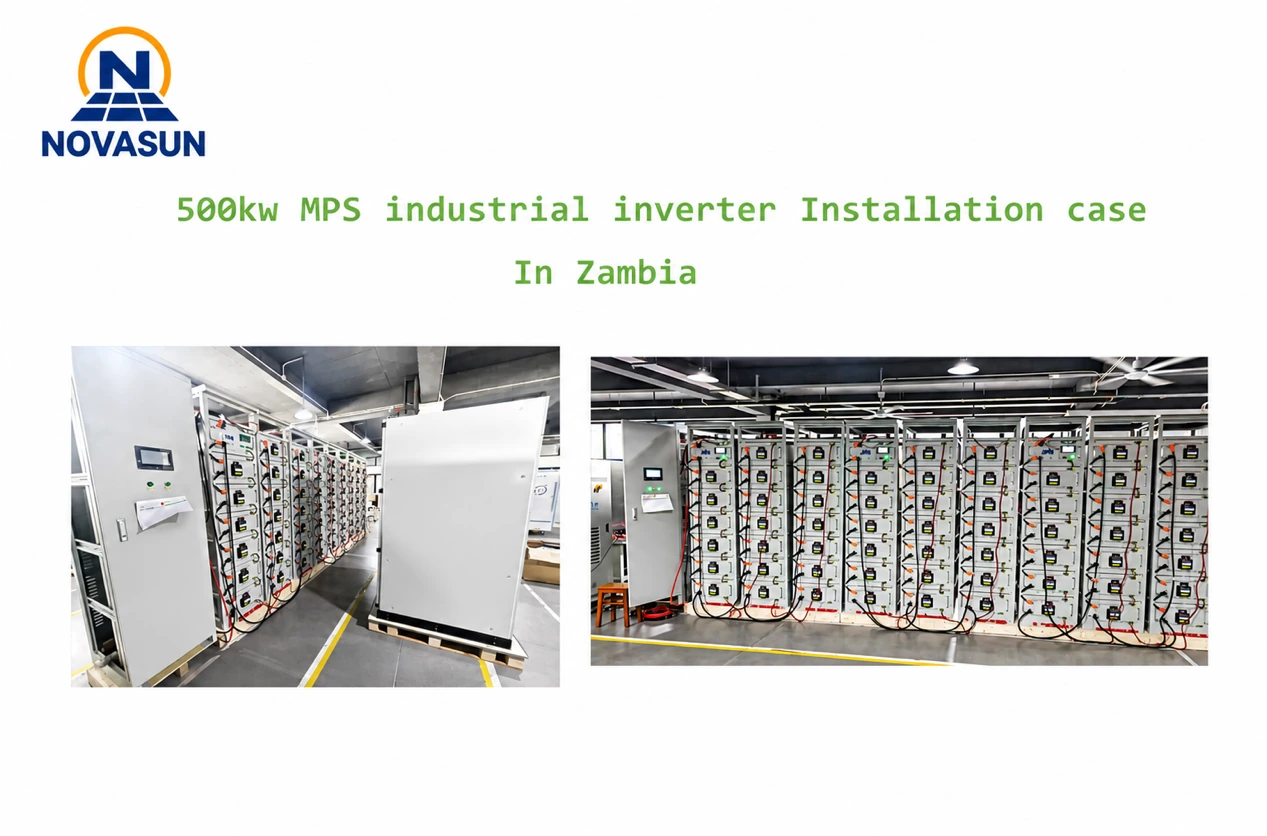

500kW MPS Industrial Inverter Installation Case in Zambia
Start an Inquiry
Tell us your industrial load, grid conditions, PV capacity, battery capacity and delivery market. Our team will configure a suitable 500kW/1000kWh hybrid solar energy storage system.
