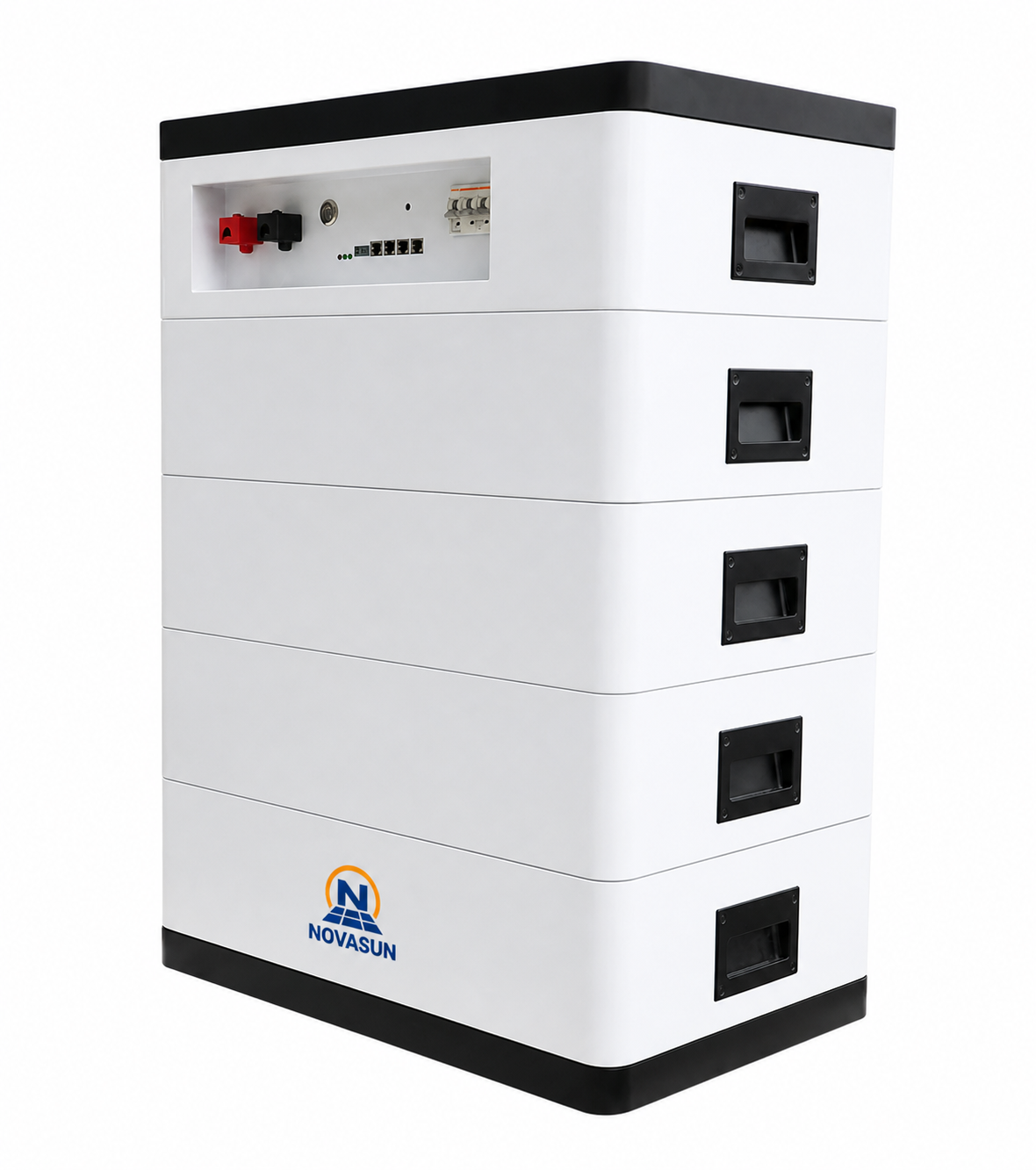

10–30kWh Stackable High-Voltage LiFePO4 Battery System
This stackable plug-and-play battery system reduces installation and maintenance work while supporting safe, flexible energy storage. Multi-level protection, fault isolation and cloud monitoring help maintain dependable operation for residential and small-business applications.
| Brand | NOVASUN |
|---|---|
| Battery Type | LiFePO4 |
| Nominal Capacity | 10–30kWh |
| Nominal Voltage | 204.8V–512V |
| Certification | CE / IEC / UL / UN38.3 / MSDS |
| Design Life | 10+ Years |
Product Description
The modular stack design allows battery modules to connect without external wiring, shortening installation time and simplifying future expansion. Integrated safety controls and remote monitoring support day-to-day operation in homes and small commercial sites.
Technical Specifications
| Model | GHV1-P11 | GHV1-P16 | GHV1-P22 | GHV1-P27 |
|---|---|---|---|---|
| Battery module | BAT-5.32 (32S1P, 102.4V, 52Ah) | |||
| Number of modules | 2 | 3 | 4 | 5 |
| Rated energy (kWh) | 10.64 | 15.96 | 21.28 | 26.6 |
| Overall dimensions (D × W × H, mm) | 420 × 625 × 625 | 420 × 625 × 800 | 420 × 625 × 975 | 420 × 625 × 1150 |
| Weight (kg) | 101 | 151.5 | 202 | 252.5 |
| Nominal voltage (V) | 204.8 | 307.2 | 409.6 | 512 |
| Working voltage range (V) | 179.2–233.6 | 268.8–350.4 | 358.4–467.2 | 358.4–584 |
| Charging voltage (V) | 230.4 | 345.6 | 460.8 | 576 |
| Standard charging current (A) | 25 | |||
| Maximum discharging current (A) | 25 | |||
| Control module | PDU-HV1 | |||
| Operating temperature (°C) | Charging: 0–55; Discharging: −20–55 | |||
| Operating humidity (%RH) | ≤95 (without condensation) | |||
| Heat dissipation | Natural heat dissipation | |||
| Communication | CAN / RS485 / Dry Contact | |||
| Battery voltage range (V) | 179.2–233.6 | 268.8–350.4 | 358.4–467.2 | 448–584 |
Specifications are subject to change without prior notice.

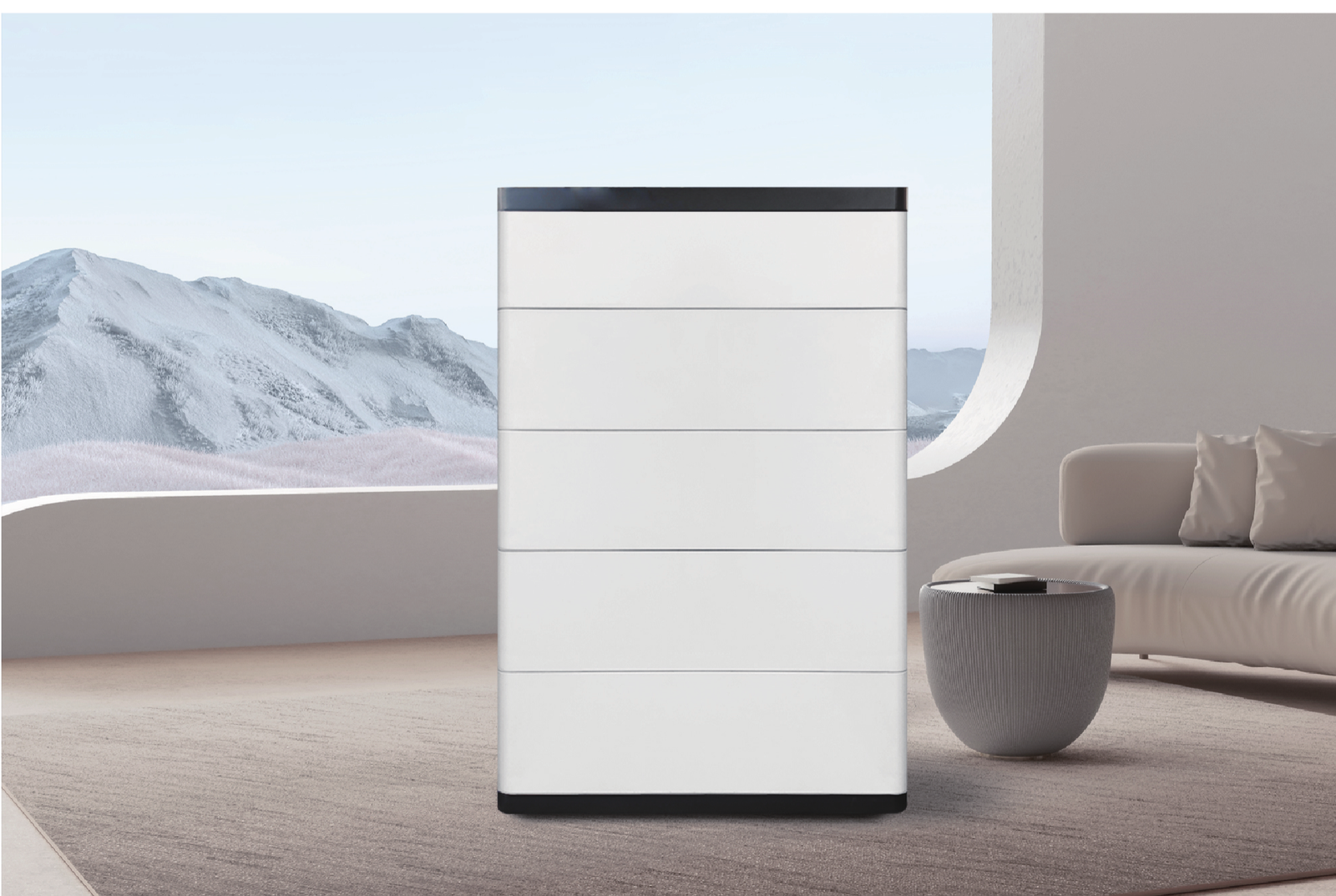

Application Examples
Start an Inquiry
Tell us your required capacity, inverter model, installation site and delivery market. Our team will help you select a suitable stackable battery configuration.
